Male Manifold

Linknewtech

Male Manifold

$4.40

(0) Write a Review

SKU:: MM
Weight:: 0.10 LBS
Shipping:: Calculated at Checkout

Current Stock:

Product Description

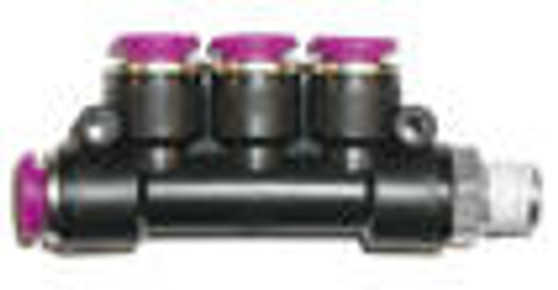

Model MM Male Manifold

Part No.	A	B	D	D1	H	J	P1	P2	T	D2	X1	Y1	X2	Y2	Weight, g
MM-1/4-5/32-N1/8	0.32	2.71	1/4	5/32	0.47	0.54	0.56	0.50	1/8NPT	0.12	0.47	0.55	0.38	0.46	23.5
MM-5/16-5/32-N1/4	0.39	2.82	5/16	5/32	0.55	0.51	0.58	0.51	1/4NPT	0.12	0.54	0.61	0.38	0.46	26.6
MM-5/16-1/4-N1/4	0.40	2.81	5/16	1/4	0.56	0.54	0.58	0.53	1/4NPT	0.12	0.54	0.61	0.47	0.55	27.1

MM06-04-R1/8	6.7	68.5	6	4	12	12.6	14.4	13.1	R1/8	3.0	11.5	13.6	9.7	11.6	23.7
MM08-6-R1/4	7.8	69.9	8	6	14	13.6	14.6	13.4	R1/4	3.0	13.6	15.6	11.5	13.6	25.5
MM10-8-R3/8	10.9	91.6	10	8	17	14.9	18.3	15.0	R3/8	4.0	16.0	18.3	13.6	15.6	25.1

MU Manifold Union

Part No.	B	D	D1	F1	F2	J	P1	P2	D2	X1	Y1	X2	Y2	WEIGHT (g)
MU1/4-5/32	2.44	1/4	5/32	0.38	1.62	0.52	0.57	0.51	0.12	0.47	0.55	0.38	0.46	15.7
MU-5/16-5/32	2.43	5/16	5/32	0.37	1.62	0.52	0.58	0.51	0.12	0.54	0.61	0.38	0.46	15.6
MU-5/16-1/4	2.43	5/16	1/4	0.38	1.63	0.53	0.58	0.52	0.12	0.54	0.61	0.47	0.55	16.2

MU-6-04	61.3	6	4	9.3	40.4	12.7	14.5	13.0	3.0	11.5	13.6	9.7	11.6	16.5
MU-8-04	61.7	8	4	9.4	40.9	13.2	14.6	13.0	3.0	13.6	15.6	9.7	11.6	16.4
MU-8-06
MU-10-06	82.9	10	6	10.5	47.1	15.0	18.5	14.5	4.0	16.0	18.3	11.5	13.6	26.9
MU-10-08	83.0	10	8	10.9	47.9	14.9	18.3	15.0	4.0	16.0	18.3	13.6	15.6	26.8

Link to Push-In Air Fitting Installation Procedure and Specifications
